EX Load Cells & Junction Boxes

Hazardous-area weighing components for applications that require explosion-protected load cells and junction boxes.

B3G
B3G Stainless Steel Zemic Load Cell
50kg - 10ton

The Zemic B3G load cell can be used in Tension and compression applications. Suitable for hanging, hopper and other weighing devices. The B3G load cell is also known as a S type load cell. This is because it is shaped as a S. The load cell is threaded at the top and the bottom. This allows for easily installation.

Get Quote
B6E
B6E Stainless Steel Zemic Load Cell
20kg - 300kg

Type - Single Point Rating - IP66 Capacity - 20kg ~300kg Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 2m cable length Download Spec Sheet

Get Quote
B6F
B6F Stainless Steel Zemic Load Cell
50kg - 2ton

Type - Single Point with parallel beam Rating - IP66 Capacity - 50kg ~ 2000kg Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 6.2mm 3m cable length Download Spec Sheet

Get Quote
B6G
B6G Stainless Steel Zemic Load Cell
50kg - 635kg

Type - Single Point Rating - IP66 Capacity - 50kg ~ 635kg Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 6 wire cable Ø 6.2mm 3m cable length Download Spec Sheet

Get Quote
B6N
B6N Stainless Steel Zemic Load Cell
5kg - 200kg

Type - Single Point Rating - IP66 Capacity - 3kg ~ 100kg Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 1m cable length Download Spec Sheet

Get Quote
B6Q
B6Q Stainless Steel Zemic Load Cell
150kg - 250kg

Type - Single Point with parallel beam Rating - IP6 Capacity - 50kg ~ 250kg Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 6 wire cable Ø 5mm 1.5m cable length Download Spec Sheet

Get Quote
B8D
B8D Stainless Steel Zemic Load Cell
500kg - 5ton

Features Stainless steel IP67 shear beam load cell (250kg is bending beam load cells) Suitable for floor scales, automobile test facilities, hopper scales and other weighing devices. Specifications Type - Shear Beam Rating - IP67 Capacity - 0.

Get Quote
B9D
B9D Stainless Steel Zemic Load Cell
1Klb - 75Klb

Type - Dual Shear Beam Rating - IP67 Capacity - 1Klb ~ 75Klb Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 6m cable length Download Spec Sheet

Get Quote
B9E
B9E Stainless Steel Zemic Load Cell

Features Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available. Ingress protection (according to EN 60529): IP67 Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices.

Get Quote
B9F
B9F Stainless Steel Zemic Load Cell
10Klb - 75Klb

Features Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available. Ingress protection (according to EN 60529): IP67 Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices.

Get Quote
B9H
B9H Stainless Steel Zemic Load Cell
50Klb - 100Klb

Features Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available. Ingress protection (according to EN 60529): IP67 Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices.

Get Quote
BM11
BM11 Stainless Steel Zemic Load Cell
5kg - 500kg

Features Stainless steel IP68 single ended bending beam Hermetically sealed Suitable for pallet, platform and small hopper scales High accuracy Current calibrated (sc-option) Specifications Type - Bellowed Rating- IP68 Capacity - 5kg ~ 500kg Approvals - OIML, Ex Optional Accuracy - C3 Wiring - Shielded 4 wire or 6 wire cable Ø.

Get Quote
BM14A
BM14A Stainless Steel Zemic Load Cell
25ton - 40ton

Features Stainless steel IP68 compression load cell Hermetically sealed Suitable for vehicle and hopper scales and vehicle testing facilities Built in surge arrestors Current calibrated (sc-option) Specifications Type - Column structure Rating - IP68 Capacity - 10t ~ 100t 10Klb ~ 500Klb Approvals - OIML, Ex Optional Accuracy -.

Get Quote
BM14C
BM14C Stainless Steel Zemic Load Cell
0,5ton - 50ton

Features Stainless steel IP68 compression load cell Hermetically sealed Suitable for vehicle and hopper scales and vehicle testing facilities Built in surge arrestors High accuracy Current calibrated (sc-option) Specifications Type - Column structure Rating - IP68 Capacity - 0.

Get Quote
BM14D
BM14D Stainless Steel Zemic Load Cell
10ton - 100ton

Features Stainless steel IP68 compression/tension load cell Hermetically sealed Suitable for vehicle and hopper scales and vehicle testing facilities Built in surge arrestors Specifications Type - Column structure Rating- IP68 Capacity - 10t ~ 100t Approvals - Ex Optional Accuracy- C3 Wiring - Shielded 6 wire cable Ø 5mm 20m.

Get Quote
BM14G
BM14G Stainless Steel Zemic Load Cell
10ton - 50ton

Features Stainless steel IP68 compression load cell Hermetically sealed Suitable for hopper scales and vehicle testing facilities Built in surge arrestors Current calibrated (sc-option) Specifications Type - Column structure Rating - IP68 Capacity - 10t ~50t Approvals - OIML, Ex Optional Accuracy - C3 Wiring - Shielded 4 wire.

Get Quote
BM14K
BM14K Stainless Steel Zemic Load Cell
10ton - 100ton

Features Stainless steel IP68 compression load cell Hermetically sealed Suitable for hopper scales and vehicle testing facilities Built in surge arrestors Specifications Type - Column structure Rating - IP68 Capacity - 10t ~ 100t Approvals - OIML, Ex Optional Accuracy - C3 Wiring - Shielded 6 wire cable Ø 5mm 12m cable length.

Get Quote
BM3
BM3 Stainless Steel Zemic Load Cell
0.5ton - 7.5ton

Features Stainless steel IP68 "S" type load cell. Tension and compression applications. Suitable for hanging, hopper and other weighing devices. Specifications Type - S Beam Rating - IP68 Capacity - 500kg ~ 7.5t Approvals - OIML Ex Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 3m cable length (500kg), 6m (1t~7.

Get Quote
BM6A
BM6A Stainless Steel Zemic Load Cell
6kg - 60kg

Type - Single point with parallel beam Rating - IP68 Capacity - 50kg ~ 300kg Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 4 wire or 6 wire cable Ø 5mm 3m cable length (3 wire) 6m (6 wire) Download Spec Sheet

Get Quote
BM6G
BM6G Stainless Steel Zemic Load Cell
75kg - 500kg

Type - Single point with parallel beam Rating - IP68 Capacity - 75kg ~ 500kg Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 3m cable length Download Spec Sheet

Get Quote
BM8D
BM8D Stainless Steel Zemic Load Cell
0,5ton - 10ton

Features Stainless steel shear beam load cell (150kg and 300kg are bending beam load cells) Hermetically sealed IP68 High accuracy Suitable for floor scales, vehicle-test line, hopper scales and other electronic weighing devices Wide range of capacities Specifications Type - Shear Beam Rating - IP68 Capacity - 1Klb ~ 20Klb: 0.

Get Quote
BM8H
BM8H Stainless Steel Zemic Load Cell
250kg - 5ton

Features Stainless steel IP68 shear beam load cell Hermetically sealed Suitable for hopper, platform and pallet scales High accuracy Current calibrated (sc-option) Specifications Type - Shear Beam Rating - IP68 Capacity - 500lb ~ 10Klb: 0.

Get Quote
H3
H3 Alloy Steel Zemic Load Cell
25kg - 30ton

The Zemic H3 load cell can be used in Tension and compression applications. Suitable for hanging, hopper and other weighing devices. The H3 load cell is also known as a S type load cell. This is because it is shaped as a S. The load cell is threaded at the top and the bottom. This allows for easily installation.

Get Quote
H3F
H3F Alloy Steel Zemic Load Cell
100kg - 5ton

The Zemic H3F load cell can be used in Tension and compression applications. Suitable for hanging, hopper and other weighing devices. The H3F load cell is also known as a S type load cell. This is because it is shaped as a S. The load cell is threaded at the top and the bottom. This allows for easily installation.

Get Quote
H3G
H3G Alloy Steel Zemic Load Cell
50kg - 7.5ton

The Zemic H3G load cell can be used in Tension and compression applications. Suitable for hanging, hopper and other weighing devices. The H3G load cell is also known as a S type load cell. This is because it is shaped as a S. The load cell is threaded at the top and the bottom. This allows for easily installation.

Get Quote
H6E
H6E Alloy Steel Zemic Load Cell
20kg - 300kg

Features Type - Single Point with parallel beam Rating- IP66 Nickel plated Capacity - 20kg ~ 300kg Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 2m cable length Specifications Nickel plated alloy steel IP68 dual shear beam load cell High accuracy Suitable for truck, track, hopper and other.

Get Quote

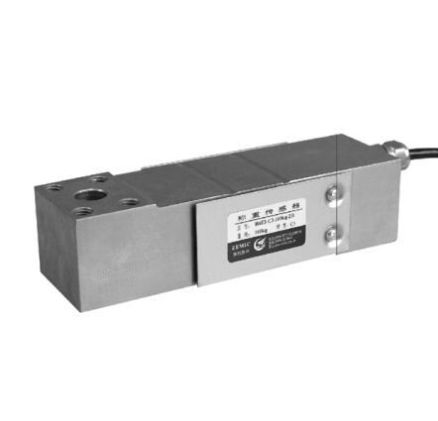

H6E3
H6E3 Alloy Steel Zemic Load Cell
20kg - 300kg

Features Stainless/ alloy steel IP67 single point load cell Suitable for the pricing scales, bench scales, belt scales etc Maximum platform size: 400*400mm Specifications Type - Single Point with parallel beam Rating - IP66 Capacity - 20kg ~ 300kg Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 3m.

Get Quote

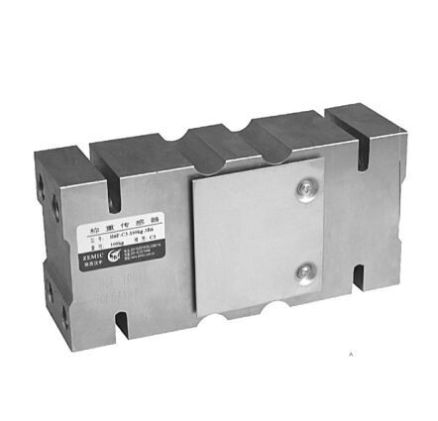

H6F
H6F Alloy Steel Zemic Load Cell
50kg - 2ton

Features Stainless steel IP67 single point load cell Bending beam Suitable for belt, platform and other electronic weighing devices Maximum platform size: for 50kg-200kg: 400 x 400 mm ; for 250kg-500kg: 600 x 800 mm;

Get Quote
H6G
H6G Alloy Steel Zemic Load Cell
50kg - 635kg

Features Stainkess steel IP66 single point load cell Suitable for single or double load cell structured platform scales Recommended platform size: 600 x 600 mm. Specifications Type - Single Point with parallel beam Rating - IP66 Capacity - 50kg ~635kg Approvals- EX Optional Accuracy- C3 Wiring - Shielded 6 wire cable Ø 6.

Get Quote
H6G5
H6G5 Alloy Steel Zemic Load Cell
50kg - 2ton

Features Stainless / alloy steel IP67 single point load cell Suitable for platform, belt and other electronic scales Maximum platform size: 50kg-1t: 600 x 800, 2t: 1000x1000 mm Specifications Type - Single Point with parallel beam Rating - IP66 Capacity - 50kg ~ 2000kg Approvals- Optional Accuracy - C3 Wiring - Shielded 4 wire.

Get Quote
H8
H8 Alloy Steel Zemic Load Cell
500kg - 50ton

Features Nickel plated alloy steel IP67 shear beam load cell Suitable for truck-, track and hopper scales Suitable for hazardous locations Specifications Type - Single shear beam Rating - IP67 Capacity - 0.5t ~ 50t Approvals - OIML, EX Optional Accuracy - C3 Wiring - Shielded 6 wire cable Ø 6.2mm 4m (0.

Get Quote
H8C
H8C Alloy Steel Zemic load cell
100kg - 10ton

The ZEMIC H8C shear beam load cell is commonly used in floor and pallet scales, packing scales, automation and process projects as well as cattle weigh beams to name a few. Available in alloy and stainless steel.

Get Quote
H9C
H9C Alloy Steel Zemic Load Cell

Features Stainless steel IP67 dual shear beam load cell High accuracy Suitable for truck scales and other heavy weighing devices Sealed construction Specifications Type - Dual shear beam Rating - IP67 Capacity - 5Klb ~ 250Klb Approvals - OIML, EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm (5K ~ 20K) Ø 8mm (30K.

Get Quote
H9D
H9D Alloy Steel Zemic Load Cell
5Klb - 250Klb

Features Nickel plated alloy steel IP67 dual shear beam load cell High accuracy Suitable for truck and track scales and other heavy weighing devices Sealed construction Specifications Type - Dual shear beam Rating - IP67 Capacity - 1Klb ~ 75Klb Approvals - OIML, EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 6m.

Get Quote
H9N
H9N Alloy Steel Zemic Load Cell
25Klb - 200Klb

Type - Dual shear beam Rating - IP67 Capacity - 25Klb ~ 200Klb Approvals - - Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 9m cable length Download Spec Sheet

Get Quote
HM11
HM11 Alloy Steel Zemic Load Cell
5kg - 500kg

Type - Bellowed Rating - IP68 Capacity -5kg ~500kg Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 or 6 wire cable Ø 5mm (5K ~ 20K) 3m length (4 wire) 6m length (6 wire) Download Spec Sheet

Get Quote
HM14C
HM14C Alloy Steel Zemic Load Cell
10ton - 50ton

Features Nickel plated alloy steel IP68 column shear load cell Hermetically sealed Suitable for truck, track, hopper and other electronic weighing devices High accuracy Protected against lightning surges Current calibrated (sc option) Specifications Type - Column structure Rating - IP68 Capacity - 10t ~ 50t Approvals - EX.

Get Quote
HM8
HM8 Alloy Steel Zemic Load Cell
1ton - 30ton

Features Nickel plated alloy steel IP68 shear beam load cell Hermetically sealed Suitable for truck, track, hopper and other electronic weighing devices Specifications Type - Single shear beam Rating - Alloy Steel Capacity - 1t ~ 30t Approvals - EX Optional Accuracy- C3 Wiring - Shielded 6 wire cable Ø 6.

Get Quote
HM8C
HM8C Alloy Steel Zemic Load Cell
500kg - 5ton

Features Nickel plated alloy steel IP68 shear beam load cell Hermetically sealed Suitable for electronic platform scales, hopper scales High accuracy Specifications Type - Single shear beam Rating - IP68 Capacity - 0.5ton ~ 5ton Approvals - EX Optional Accuracy- C3 Wiring - Shielded 4 wire cable Ø 5mm 4m (0.5t ~ 2t) 6m (2.

Get Quote
HM9B
HM9B Alloy Steel Zemic Load Cell
10ton - 50ton

Features Type - Dual shear beam Rating - IP68 Nickel plated Capacity - 10t ~ 50t Approvals - OIML, NRCS, EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5.

Get Quote
HM9C
HM9C Alloy Steel Zemic Load Cell
5Klb - 250Klb

Features Nickel plated alloy steel IP68 dual shear beam load cell High accuracy Suitable for truck and track scales and other heavy weighing devices Hermetically sealed Specifications Type - Dual shear beam Rating - IP68 Capacity - 5Klb ~ 250Klb Approvals - OIML, EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm.

Get Quote
HM9E
HM9E Alloy Steel Zemic Load Cell
50Klb - 250Klb

Features Nickel plated alloy steel IP68 dual shear beam load cell High accuracy Suitable for truck and track scales and other heavy weighing devices Hermetically sealed Specifications Type - Dual shear beam Rating - IP68 Capacity - 5Klb ~ 250Klb 20t ~ 100t Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø.

Get Quote

ZEMIC Load cells by Material

View load cells by their construction material
signle point
Alloy Steel Load cell Range

Load cell model starting with (H) alloy steel For weighing in general areas
or standard environments.

View Range
stainless steel loadcells
Stainless Steel Load cells Range

Load cell model starting with (B) stainless steel For weighing in wet areas or corrosive environments.

View Range
Aluminium Loadcell Range
Aluminium Load cell Range

Load cell model starting with (L) aluminium For weighing in general areas or standard environments.

View Range

This symbolizes the level of Ingress Protection for electronic materials, in accordance with the IEC 529, DIN 40050, BS 5490 and NF C 20-010 standards

0 = Non protected
1 = Protected against solid foreign objects of 50mm diameter and greater
2 = Protected against foreign objects of 12.5mm diameter and greater
3 = Protected against solid foreign objects of 2.5mm diameter and greater
4 = Protected against solid foreign objects of 1.0 mm diameter and greater
5 = Dust protected
6 = Dust tight

0 = Not protected
1 = Protected against vertically falling water drops
2 = Protected against falling water drops as the enclosure is tilted 15 degrees
3 = Protected against spraying water
4 = Protected against splashing water
5 = Protected against water jetting
6 = Protected against powerful water jetting
7 = Protected against temporary immersion
8 = Protected against continuous immersion

Material Reference

Loadcell or accessory models starting with the following letters refer to the material they are made from:
H = Alloy Steel / L = Aluminium / B = Stainless Steel

What does OIML stand for?

The majority of the products manufactured by Zemic and therefore the weighing prodcuts and loadcell models Richter Scale offer for sale are genuine OIML approved products.

The International Organization of Legal Metrology (OIML) is an intergovernmental treaty organization which develops model regulations, standards and related documents for use by legal metrology authorities and industry, provides mutual recognition systems which reduce trade barriers and costs in a global market, represents the interests of the legal metrology community within international organizations and forums concerned with metrology, standardization, testing, certification and accreditation, promotes and facilitates the exchange of knowledge and competencies within the legal metrology community worldwide, cooperates with other metrology bodies to raise awareness of the contribution that a sound legal metrology infrastructure can make to a modern economy.of the economy and ruining our reputation by selling cheap products that don't last. Buying an industrial scale that will stand up to the rigours of the local market and operators requires careful and fully informed research.

Legal Metrology Accredited

We are an NRCS and SANAS accredited Verification body and Repair body under the Legal Metrology Act and Legal Metrology Regulations. Our products are type approved for trade use / prescribed purpose and thus carry the NRCS stamp of quality and excellence, giving you the confidence that you will get a product that meets a standard of quality and reliability which is traceable to international metrology and quality standards.

sanas

Frequently asked questions

More Information

A load cell is the heart of any scale. Inferior metals, combined with un-tested and unstable strain gauges within these load cells mean that these cannot perform consistently in various conditions, temperatures or even during simple repeatability testing by the untrained operator! Look for a trusted brand with quality materials and a supplier like us with direct factory backing and guarantees. Beware of copies and imitations. If it’s not sourced from Richter Scale there is a chance it could be a copy or model made for entry level domestic use.

First check if the scale/weighing system is for trade/prescribed purpose or not? If they are then 99/100 times you will have to replace with the same make and model.

Non trade applications - if the size and hole patterns fit then you are free to substitute your current load cell with a ZEMIC LOAD CELL.

Analogue load cells :
*Sends mV via the signal lines to the instrument which has an Analogue to Digital convertor.
*Easy to substitute and replace with other manufacturers.
*Cheaper.

Digital load cells :
*These have an Analogue to Digital convertor attached to the body or inside the load cell. It then sends RS422/485 to the indicator.
*More expensive
*Less/no compatibility with other manufacturers.
*Protocol locked.

The strain gauges and body/element material of the same brand load cells between these 2 technologies remain the same.

It is only on the digital conversion side where they differ in technology.

You can either click on the download spec sheet button located on the individual loadcell page or you can visit our downloads page

Areas or sites with potentially hazardous or explosive environments require weighing equipment which has EX ratings. Many of our Alloy and Stainless steel loadcells are available in an EX version. These should be paired with EX rated junction boxes and EX rated instrumentation.

Dusty and/or wet/corrosive applications call for greater protection against dust and moisture. IP ratings vary from IP65, IP66, IP67, IP68, IP69

These levels and numbers indicate the level of exposure and/or submersion in water and exposure to dust which the load cell can withstand before ingress (leakage) inside the load cells.

Hazardous-area system guidance

EX Load Cell and Junction Box Guidance

Hazardous-area weighing requires the correct load cell, junction box, wiring method and site classification before equipment is selected.

01

Typical industries

Chemical plants, grain handling, fuel storage, paint production, mining, food dust areas and any zone with explosive gas or dust risk.

02

Selection checks

Confirm zone classification, gas or dust group, temperature class, barrier requirements, cable glands and the approval documents needed on site.

03

System approach

The load cell is only one part of the EX system. Junction boxes, barriers, indicators and wiring must all suit the hazardous-area design.

04

Documentation

Keep certificates, wiring diagrams and installation records with the site file for inspection and maintenance.

05

Installation caution

Do not substitute standard cells, glands or boxes into an EX installation without approval from the responsible engineer.

06

Maintenance

Inspect glands, seals, earth bonding and enclosure condition during service visits.

PRODUCT FAQ

Common Questions

Can I use a normal junction box in an EX area?

No. The junction box and wiring method must match the hazardous-area requirements.

What information is needed for a quote?

Zone, gas or dust classification, capacity, number of cells, instrumentation location and any certificate requirements.
