Best applications
Weighbridges, silos, tanks, heavy platforms and high-capacity process weighing.
B9B1 Stainless Steel Zemic Load Cell
2ton
Features Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available. Ingress protection (according to EN 60529): IP67 Suitable for platform scales and other electronic weighing devices.
B9D Stainless Steel Zemic Load Cell
1Klb - 75Klb
Type - Dual Shear Beam Rating - IP67 Capacity - 1Klb ~ 75Klb Approvals - Ex Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 6m cable length Download Spec Sheet

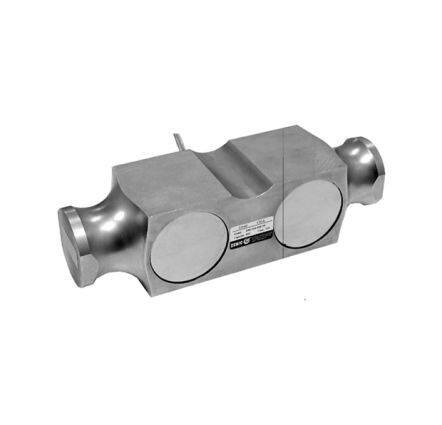

B9E Stainless Steel Zemic Load Cell
Features Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available. Ingress protection (according to EN 60529): IP67 Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices.

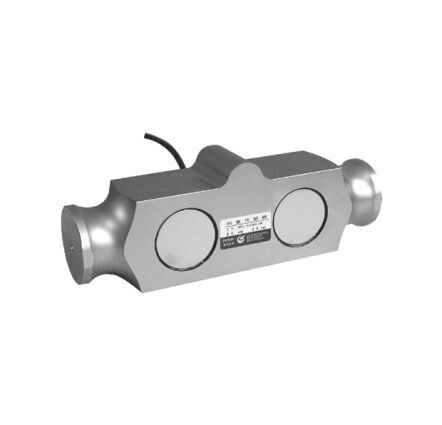

B9F Stainless Steel Zemic Load Cell
10Klb - 75Klb
Features Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available. Ingress protection (according to EN 60529): IP67 Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices.
B9H Stainless Steel Zemic Load Cell
50Klb - 100Klb
Features Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available. Ingress protection (according to EN 60529): IP67 Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices.
H9C Alloy Steel Zemic Load Cell
Features Stainless steel IP67 dual shear beam load cell High accuracy Suitable for truck scales and other heavy weighing devices Sealed construction Specifications Type - Dual shear beam Rating - IP67 Capacity - 5Klb ~ 250Klb Approvals - OIML, EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm (5K ~ 20K) Ø 8mm (30K.
H9D Alloy Steel Zemic Load Cell
5Klb - 250Klb
Features Nickel plated alloy steel IP67 dual shear beam load cell High accuracy Suitable for truck and track scales and other heavy weighing devices Sealed construction Specifications Type - Dual shear beam Rating - IP67 Capacity - 1Klb ~ 75Klb Approvals - OIML, EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 6m.
H9H Alloy Steel Zemic Load Cell
50Klb - 100Klb
Features Alloy steel , nickel plated, dual shear beam structure, adhesive sealed, compression load. Ingress protection (according to EN 60529): IP67 Suitable for electronic truck scales, hopper scales, railway scales and other electronic weighing devices.
H9N Alloy Steel Zemic Load Cell
25Klb - 200Klb
Type - Dual shear beam Rating - IP67 Capacity - 25Klb ~ 200Klb Approvals - - Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 9m cable length Download Spec Sheet
HM9A Alloy Steel Zemic Load Cell
10ton - 50ton
H2A load cells are available in the manifold accurate measurement in the capacities 1MN to 5MN. Alloy steel, surface bluing treatment, spray painted, oil-proof, waterproof and anti-corrosion, suitable for groundsill measuring and other engineering measuring fields.
HM9B Alloy Steel Zemic Load Cell
10ton - 50ton
Features Type - Dual shear beam Rating - IP68 Nickel plated Capacity - 10t ~ 50t Approvals - OIML, NRCS, EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5.
HM9C Alloy Steel Zemic Load Cell
5Klb - 250Klb
Features Nickel plated alloy steel IP68 dual shear beam load cell High accuracy Suitable for truck and track scales and other heavy weighing devices Hermetically sealed Specifications Type - Dual shear beam Rating - IP68 Capacity - 5Klb ~ 250Klb Approvals - OIML, EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm.
HM9E Alloy Steel Zemic Load Cell
50Klb - 250Klb
Features Nickel plated alloy steel IP68 dual shear beam load cell High accuracy Suitable for truck and track scales and other heavy weighing devices Hermetically sealed Specifications Type - Dual shear beam Rating - IP68 Capacity - 5Klb ~ 250Klb 20t ~ 100t Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø.

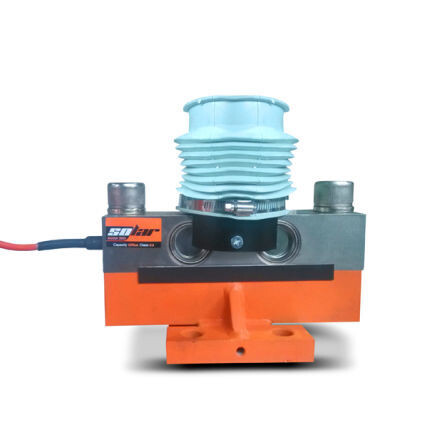

Solar 365i Alloy Steel Zemic Load Cell
Specifications Type - Dual shear beam Rating - IP68 Nickel Plated Capacity - 25t Approvals - OIML, NRCS Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5.5mm 20m cable length Download Spec Sheet Richter scale is the sole agent for Zemic Load cells for South Africa. We carry a wide range of models and capacities. Visit www.
