Best applications
Tank and silo weighing, hoppers, force testing, weighbridges and high-capacity platforms.
BM14A Stainless Steel Zemic Load Cell
25ton - 40ton
Features Stainless steel IP68 compression load cell Hermetically sealed Suitable for vehicle and hopper scales and vehicle testing facilities Built in surge arrestors Current calibrated (sc-option) Specifications Type - Column structure Rating - IP68 Capacity - 10t ~ 100t 10Klb ~ 500Klb Approvals - OIML, Ex Optional Accuracy -.
BM14C Stainless Steel Zemic Load Cell
0,5ton - 50ton
Features Stainless steel IP68 compression load cell Hermetically sealed Suitable for vehicle and hopper scales and vehicle testing facilities Built in surge arrestors High accuracy Current calibrated (sc-option) Specifications Type - Column structure Rating - IP68 Capacity - 0.
BM14D Stainless Steel Zemic Load Cell
10ton - 100ton
Features Stainless steel IP68 compression/tension load cell Hermetically sealed Suitable for vehicle and hopper scales and vehicle testing facilities Built in surge arrestors Specifications Type - Column structure Rating- IP68 Capacity - 10t ~ 100t Approvals - Ex Optional Accuracy- C3 Wiring - Shielded 6 wire cable Ø 5mm 20m.
BM14G Stainless Steel Zemic Load Cell
10ton - 50ton
Features Stainless steel IP68 compression load cell Hermetically sealed Suitable for hopper scales and vehicle testing facilities Built in surge arrestors Current calibrated (sc-option) Specifications Type - Column structure Rating - IP68 Capacity - 10t ~50t Approvals - OIML, Ex Optional Accuracy - C3 Wiring - Shielded 4 wire.
BM14K Stainless Steel Zemic Load Cell
10ton - 100ton
Features Stainless steel IP68 compression load cell Hermetically sealed Suitable for hopper scales and vehicle testing facilities Built in surge arrestors Specifications Type - Column structure Rating - IP68 Capacity - 10t ~ 100t Approvals - OIML, Ex Optional Accuracy - C3 Wiring - Shielded 6 wire cable Ø 5mm 12m cable length.
BM24R Stainless Steel Zemic Load Cell
60kg - 60ton
Features Stainless steel IP68 low profile load cell Hermetically sealed Suitable for hopper, platform and pallet scales Integrated static overload protection up to 13t Specifications Type - Spoke Type Rating - IP68 Capacity - 60kg ~ 60ton Approvals - - Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 12m cable length Download.
H2A Alloy Steel Zemic Load Cell
1MN - 5MN
H2A load cells are available in the manifold accurate measurement in the capacities 1 MN to 5MN. Alloy steel, surface bluing treatment, spray painted, oil-proof, waterproof and anti-corrosion, suitable for groundsill measuring and other engineering measuring fields.
H2F Alloy Steel Zemic Load Cell
15ton - 50ton
H2F load cells are available for manifold accurate measurement in the capacities 1t~50t. Alloy steel, potted with adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.

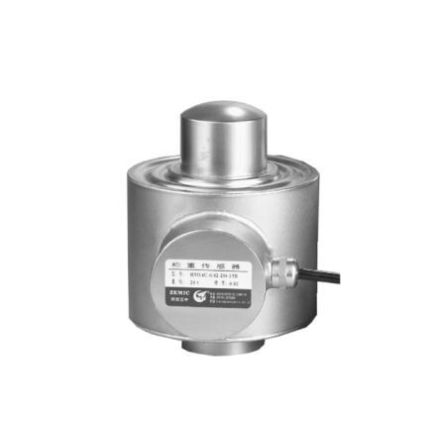

HM14C Alloy Steel Zemic Load Cell
10ton - 50ton
Features Nickel plated alloy steel IP68 column shear load cell Hermetically sealed Suitable for truck, track, hopper and other electronic weighing devices High accuracy Protected against lightning surges Current calibrated (sc option) Specifications Type - Column structure Rating - IP68 Capacity - 10t ~ 50t Approvals - EX.
HM14H Alloy Steel Zemic Load Cell
10ton - 60ton
Features Capacity 10t~60t High accuracy Alloy steel construction Easy installation and reliable performance Accessories HM-14-409 BM 14-410 Specifications Type - Column structure Rating - IP68 Capacity - 10t ~ 60t Approvals - - Accuracy - C3 Wiring - Shielded 6 wire cable Ø 5mm 12m cable length Download Spec Sheet Richter scale.
HM2D4 Alloy Steel Zemic Load Cell
500kg - 50ton
The HM2D4 load cell has been designed to be used in both compression / tension applications. One of the most popular load cells in South Africa. Alloy steel, completely welded, oil-proof, waterproof and anti-corrosive gas ideally suited for all kinds of environments such as: Truck scales, hopper scales, automotive testing.
